Home » 产品介绍 » 多层压敏电阻 » High Surge Protection (HA) Series
Series: 多层压敏电阻

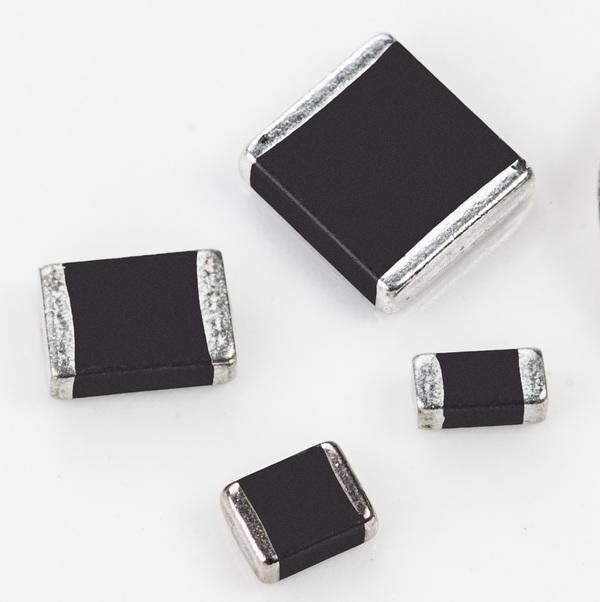

MLV HA Series

产品特点:

  • 双向对称V/I特性
  • 符合IEC61000-4-5标准
  • 极高的耐浪涌承受能力:200-800A@8/20μs
  • 多层结构、更高功耗

Electrical Characteristics

Supplier Part Number Fuse Type Size Clamping Voltage Working Voltage (Max) Typical Capacitance Value (1 MHz) Typical Capacitance 1 KHz (pF) Reel Qty Standard Package Status Package Type RoHS
MLV1206HA014V0200 High Surge Protection 1206 30 14VDC 1.2 C (pF) 1200 3000 3000 Active Tape and Reel Y
MLV1206HA018V0200 High Surge Protection 1206 39 18VDC 0.78 C (pF) 780 3000 3000 Active Tape and Reel Y
MLV1206HA022V0200 High Surge Protection 1206 44 22VDC 0.75 C (pF) 750 3000 3000 Active Tape and Reel Y
MLV1206HA026V0200 High Surge Protection 1206 54 26VDC 0.7 C (pF) 700 3000 3000 Active Tape and Reel Y
MLV1206HA030V0200 High Surge Protection 1206 65 30VDC 0.51 C (pF) 510 3000 3000 Active Tape and Reel Y
MLV1206HA038V0200 High Surge Protection 1206 77 38VDC 0.44 C (pF) 440 3000 3000 Active Tape and Reel Y
MLV1210HA014V0400 High Surge Protection 1210 30 14VDC 2 C (pF) 2000 2000 2000 Active Tape and Reel Y
MLV1210HA018V0400 High Surge Protection 1210 39 18VDC 1.6 C (pF) 1600 2000 2000 Active Tape and Reel Y
MLV1210HA022V0400 High Surge Protection 1210 44 22VDC 1.5 C (pF) 1500 2000 2000 Active Tape and Reel Y
MLV1210HA026V0400 High Surge Protection 1210 54 26VDC 0.88 C (pF) 880 2000 2000 Active Tape and Reel Y
MLV1210HA030V0400 High Surge Protection 1210 65 30VDC 0.8 C (pF) 800 2000 2000 Active Tape and Reel Y
MLV1210HA038V0400 High Surge Protection 1210 77 38VDC 0.53 C (pF) 530 2000 2000 Active Tape and Reel Y
MLV1812HA018V0800 High Surge Protection 1812 38 18VDC 3.5 C (pF) 3500 1000 1000 Active Tape and Reel Y
MLV1812HA030V0800 High Surge Protection 1812 65 30VDC 2.35 C (pF) 2350 1000 1000 Active Tape and Reel Y
MLV1812HA038V0800 High Surge Protection 1812 77 38VDC 1.6 C (pF) 1600 1000 1000 Active Tape and Reel Y
MLV1812HA045V0800 High Surge Protection 1812 90 45VDC 1.2 C (pF) 1200 1000 1000 Active Tape and Reel Y
MLV2220HA014V1200 High Surge Protection 2220 30 14VDC 10.5 C (pF) 10500 1000 1000 Active Tape and Reel Y
MLV2220HA018V1200 High Surge Protection 2220 39 18VDC 8.5 C (pF) 8500 1000 1000 Active Tape and Reel Y
MLV2220HA022V1200 High Surge Protection 2220 44 22VDC 8.3 C (pF) 8300 1000 1000 Active Tape and Reel Y
MLV2220HA030V1200 High Surge Protection 2220 65 30VDC 6 C (pF) 6000 1000 1000 Active Tape and Reel Y
MLV2220HA038V1200 High Surge Protection 2220 77 38VDC 4 C (pF) 4000 1000 1000 Active Tape and Reel Y
MLV2220HA045V1200 High Surge Protection 2220 90 45VDC 3.5 C (pF) 3500 1000 1000 Active Tape and Reel Y
