SB Series (Slow Blow)

Series: SolidMatrix® 叠层贴片保险丝

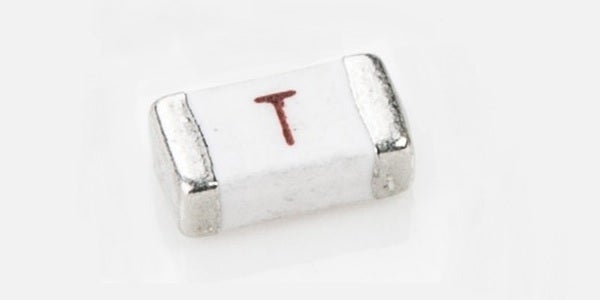

SolidMatrix® SB Series

产品特点

独石结构，玻璃陶瓷基体，内部银熔体。
银电极表面镀镍和焊料（无铅），有极好的可焊性。
适用于波峰焊和回流焊。
使用温度范围：-55℃～+125℃。
编带和卷盘包装。

Electrical Characteristics

Supplier Part Number	Fuse Type	Size	Current Rating	Voltage Rating	Interrupting Rating	Reel Qty	Standard Package	Status	Package Type	RoHS	Intro Date (MM/DD/YYYY)
F1206SB1000V063T	Slow Blow	1206	1.00A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB1000V063TM	Slow Blow	1206	1.00A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB1250V063T	Slow Blow	1206	1.25A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB1250V063TM	Slow Blow	1206	1.25A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB1500V063T	Slow Blow	1206	1.50A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB1500V063TM	Slow Blow	1206	1.50A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB2000V063T	Slow Blow	1206	2.00A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB2000V063TM	Slow Blow	1206	2.00A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB2500V032T	Slow Blow	1206	2.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB2500V032TM	Slow Blow	1206	2.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB3000V032T	Slow Blow	1206	3.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB3000V032TM	Slow Blow	1206	3.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB3500V032T	Slow Blow	1206	3.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB3500V032TM	Slow Blow	1206	3.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB4000V032T	Slow Blow	1206	4.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB4000V032TM	Slow Blow	1206	4.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB4500V032T	Slow Blow	1206	4.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB4500V032TM	Slow Blow	1206	4.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB5000V032T	Slow Blow	1206	5.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB5000V032TM	Slow Blow	1206	5.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB5500V024T	Slow Blow	1206	5.50A	24VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB5500V024TM	Slow Blow	1206	5.50A	24VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB6000V024T	Slow Blow	1206	6.00A	24VDC	60A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB6000V024TM	Slow Blow	1206	6.00A	24VDC	60A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB7000V024T	Slow Blow	1206	7.00A	24VDC	60A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB7000V024TM	Slow Blow	1206	7.00A	24VDC	60A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB8000V024T	Slow Blow	1206	8.00A	24VDC	60A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F1206SB8000V024TM	Slow Blow	1206	8.00A	24VDC	60A at rated voltage	3000	3000	Active	Tape and Reel	Y	12/14/2019
F0603SB1000V032T	Slow Blow	0603	1.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB1000V032TM	Slow Blow	0603	1.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB1500V032T	Slow Blow	0603	1.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB1500V032TM	Slow Blow	0603	1.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB2000V032T	Slow Blow	0603	2.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB2000V032TM	Slow Blow	0603	2.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB2500V032T	Slow Blow	0603	2.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB2500V032TM	Slow Blow	0603	2.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB3000V032T	Slow Blow	0603	3.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB3000V032TM	Slow Blow	0603	3.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB3500V032T	Slow Blow	0603	3.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB3500V032TM	Slow Blow	0603	3.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB4000V032T	Slow Blow	0603	4.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB4000V032TM	Slow Blow	0603	4.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB4500V032T	Slow Blow	0603	4.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB4500V032TM	Slow Blow	0603	4.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB5000V032T	Slow Blow	0603	5.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB5000V032TM	Slow Blow	0603	5.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB6000V032T	Slow Blow	0603	6.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB6000V032TM	Slow Blow	0603	6.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB7000V032T	Slow Blow	0603	7.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB7000V032TM	Slow Blow	0603	7.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB8000V032T	Slow Blow	0603	8.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
F0603SB8000V032TM	Slow Blow	0603	8.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y	12/14/2019
