HI Series (High Inrush)

Series: SolidMatrix® 叠层贴片保险丝

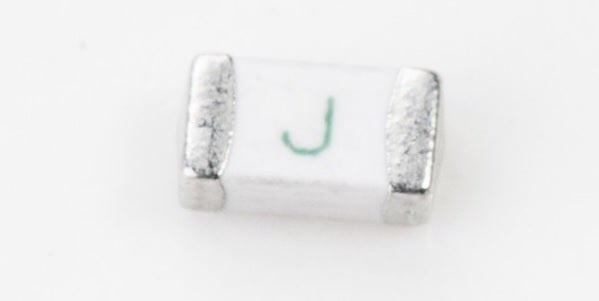

SolidMatrix® HI Series

产品特点

独石结构，玻璃陶瓷基体，内部银熔体。
银电极表面镀镍和焊料（无铅），有极好的可焊性。
适用于波峰焊和回流焊。
使用温度范围：-55℃～+125℃。
编带和卷盘包装。

Electrical Characteristics

Supplier Part Number	Part Series	Fuse Type	Size	Current Rating	Voltage Rating	Interrupting Rating	Reel Qty	Standard Package	Status	Package Type	RoHS
F0603HI1000V032TM	SolidMatrix® HI Series	High Inrush	0603	1.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI1500V032TM	SolidMatrix® HI Series	High Inrush	0603	1.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI2000V032TM	SolidMatrix® HI Series	High Inrush	0603	2.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI2500V032TM	SolidMatrix® HI Series	High Inrush	0603	2.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI3000V032TM	SolidMatrix® HI Series	High Inrush	0603	3.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI3500V032TM	SolidMatrix® HI Series	High Inrush	0603	3.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI4000V032TM	SolidMatrix® HI Series	High Inrush	0603	4.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI4500V032TM	SolidMatrix® HI Series	High Inrush	0603	4.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI5000V032TM	SolidMatrix® HI Series	High Inrush	0603	5.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI6000V032TM	SolidMatrix® HI Series	High Inrush	0603	6.00A	32VDC	70A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI7000V032TM	SolidMatrix® HI Series	High Inrush	0603	7.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y
F0603HI8000V032TM	SolidMatrix® HI Series	High Inrush	0603	8.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y
F1206HI0500V065TM	SolidMatrix® HI Series	High Inrush	1206	0.50A	65VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI0750V065TM	SolidMatrix® HI Series	High Inrush	1206	0.75A	65VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI1000V063TM	SolidMatrix® HI Series	High Inrush	1206	1.00A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI1500V063TM	SolidMatrix® HI Series	High Inrush	1206	1.50A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI2000V063TM	SolidMatrix® HI Series	High Inrush	1206	2.00A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI2500V032TM	SolidMatrix® HI Series	High Inrush	1206	2.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI3000V032TM	SolidMatrix® HI Series	High Inrush	1206	3.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI3500V032TM	SolidMatrix® HI Series	High Inrush	1206	3.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI4000V032TM	SolidMatrix® HI Series	High Inrush	1206	4.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI4500V032TM	SolidMatrix® HI Series	High Inrush	1206	4.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI5000V032TM	SolidMatrix® HI Series	High Inrush	1206	5.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI6000V024TM	SolidMatrix® HI Series	High Inrush	1206	6.00A	24VDC	80A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI7000V024TM	SolidMatrix® HI Series	High Inrush	1206	7.00A	24VDC	80A at rated voltage	3000	3000	Active	Tape and Reel	Y
F1206HI8000V024TM	SolidMatrix® HI Series	High Inrush	1206	8.00A	24VDC	80A at rated voltage	3000	3000	Active	Tape and Reel	Y
