Home » 产品介绍 » SolidMatrix® 叠层贴片保险丝 » SolidMatrix® 0603 Very Fast Acting Surface Mount Fuses
Series: SolidMatrix® 叠层贴片保险丝

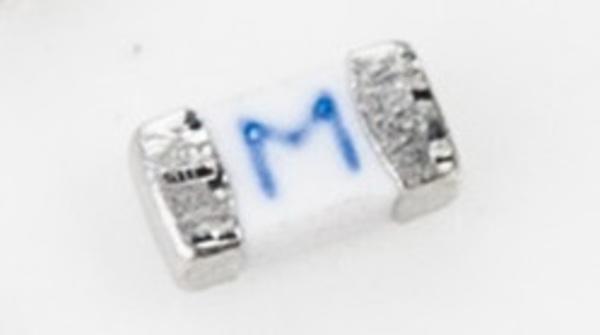

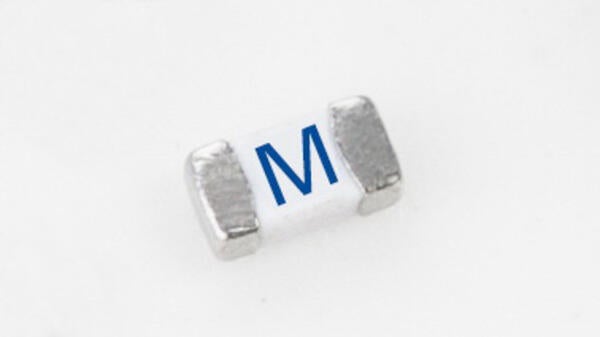

SolidMatrix® FF Series

产品特点

  • 独石结构,玻璃陶瓷基体,内部银熔体。
  • 银电极表面镀镍和焊料(无铅),有极好的可焊性。
  • 适用于波峰焊和回流焊。
  • 使用温度范围:-55℃~+125℃。
  • 编带和卷盘包装。

Electrical Characteristics

Supplier Part Number Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS
F0603FF0500V032T Fast Acting 0603 0.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF0500V032TM Very Fast Acting 0603 0.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF0750V032T Very Fast Acting 0603 0.75A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF0750V032TM Very Fast Acting 0603 0.75A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF1000V032T Very Fast Acting 0603 1.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF1000V032TM Very Fast Acting 0603 1.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF1250V032T Very Fast Acting 0603 1.25A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF1250V032TM Very Fast Acting 0603 1.25A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF1500V032T Very Fast Acting 0603 1.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF1500V032TM Very Fast Acting 0603 1.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF1750V032T Very Fast Acting 0603 1.75A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF1750V032TM Very Fast Acting 0603 1.75A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF2000V032T Very Fast Acting 0603 2.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF2000V032TM Very Fast Acting 0603 2.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF2500V032T Very Fast Acting 0603 2.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF2500V032TM Very Fast Acting 0603 2.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF3000V032T Very Fast Acting 0603 3.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF3000V032TM Very Fast Acting 0603 3.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF3500V032T Very Fast Acting 0603 3.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF3500V032TM Very Fast Acting 0603 3.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF4000V032T Very Fast Acting 0603 4.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF4000V032TM Very Fast Acting 0603 4.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF4500V032T Very Fast Acting 0603 4.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF4500V032TM Very Fast Acting 0603 4.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF5000V032T Very Fast Acting 0603 5.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
F0603FF5000V032TM Very Fast Acting 0603 5.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y
