Home » 产品介绍 » SolidMatrix® 叠层贴片保险丝 » SolidMatrix® 1206 High Current Rating Fast Acting Surface Mount Fuses (HB Series)
Series: SolidMatrix® 叠层贴片保险丝

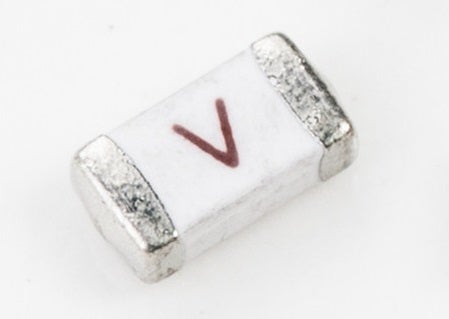

SolidMatrix® HB Series

产品特点

  • 独石结构，玻璃陶瓷基体，内部银熔体。
  • 银电极表面镀镍和焊料（无铅），有极好的可焊性。
  • 适用于波峰焊和回流焊。
  • 使用温度范围：-55℃～+125℃。
  • 编带和卷盘包装。

Related Product

SolidMatrix® HA Series
SolidMatrix® FF Series
SolidMatrix® HC Series
SolidMatrix® HI Series

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Intro Date (MM/DD/YYYY)
F1206HB10V024T SolidMatrix® HB Series High Current 1206 10.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB10V024TM SolidMatrix® HB Series High Current 1206 10.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB12V024T SolidMatrix® HB Series High Current 1206 12.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB12V024TM SolidMatrix® HB Series High Current 1206 12.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB15V024T SolidMatrix® HB Series High Current 1206 15.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB15V024TM SolidMatrix® HB Series High Current 1206 15.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB20V024T SolidMatrix® HB Series High Current 1206 20.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB20V024TM SolidMatrix® HB Series High Current 1206 20.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB25V024T SolidMatrix® HB Series High Current 1206 25.0A 24VDC 250A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB25V024TM SolidMatrix® HB Series High Current 1206 25.0A 24VDC 250A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB30V024T SolidMatrix® HB Series High Current 1206 30.0A 24VDC 300A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
F1206HB30V024TM SolidMatrix® HB Series High Current 1206 30.0A 24VDC 300A at rated voltage 3000 3000 Active Tape and Reel Y 02/16/2020
