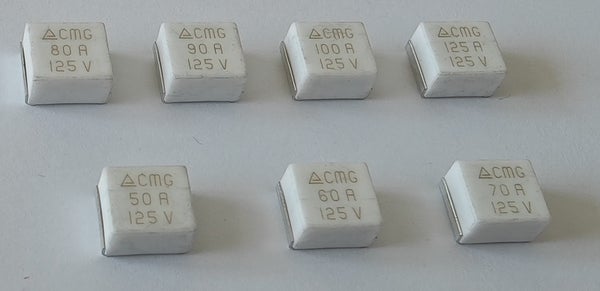

CM5040G Series

AEM CM5040G系列大电流SMD保险丝专为暴露在高电流下的电路而设计，采用无焊料陶瓷体结构，完全符合RoHS RoHS标准，支持无铅回流焊工艺，以满足现代制造要求。
工作温度范围为-55°C至125°C，CM5040G系列有效保护高功率电池系统免受过大故障电流造成的损坏。
常见的应用包括高功率电源中的功率因数校正（PFC）电路层，以及刀片服务器、标准服务器和路由器，用于计算和网络基础设施结构系统。

Supplier Part Number	Part Series	Fuse Type	Size	Current Rating	Voltage Rating	Interrupting Rating	Reel Qty	Standard Package	Status	Package Type	RoHS
CM5040G100AT	CM5040G Series	High Inrush	5040	100A	125VDC	1000 A @ 125VDC / 1500A @ 75VDC	500	500	Active	Tape & Reel	Y
CM5040G125AT	CM5040G Series	High Inrush	5040	125A	125VDC	1000 A @ 125VDC / 1500A @ 75VDC	500	500	Active	Tape & Reel	Y
CM5040G150AT	CM5040G Series	High Inrush	5040	150A	100VDC	1000 A @ 100VDC / 1500A @ 75VDC	500	500	Active	Tape & Reel	Y
CM5040G200AT	CM5040G Series	High Inrush	5040	200A	100VDC	1000 A @ 100VDC / 1500A @ 75VDC	500	500	Active	Tape & Reel	Y
CM5040G50A0T	CM5040G Series	High Inrush	5040	50A	125VDC	1000 A @ 125VDC / 1500A @ 75VDC	500	500	Active	Tape & Reel	Y
CM5040G60A0T	CM5040G Series	High Inrush	5040	60A	125VDC	1000 A @ 125VDC / 1500A @ 75VDC	500	500	Active	Tape & Reel	Y
CM5040G70A0T	CM5040G Series	High Inrush	5040	70A	125VDC	1000 A @ 125VDC / 1500A @ 75VDC	500	500	Active	Tape & Reel	Y
CM5040G80A0T	CM5040G Series	High Inrush	5040	80A	125VDC	1000 A @ 125VDC / 1500A @ 75VDC	500	500	Active	Tape & Reel	Y
CM5040G90A0T	CM5040G Series	High Inrush	5040	90A	125VDC	1000 A @ 125VDC / 1500A @ 75VDC	500	500	Active	Tape & Reel	Y
