多层压敏电阻

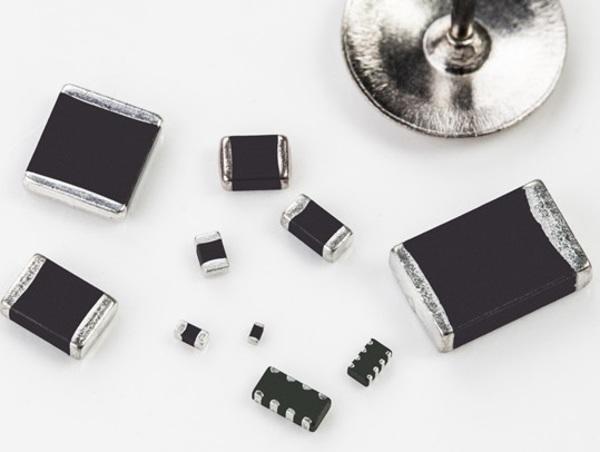

AEM多层压敏电阻系列产品包含低等级的静电保护及高等级的过压保护，尺寸涵盖0201至2220。其中，新推出的MVF系列为四路ESD-EMI阵列，可做LC滤波和静电保护，尺寸为0508。

Electrical Characteristics

Supplier Part Number	Part Series	Fuse Type	Size	Clamping Voltage	Working Voltage (Max)	Typical Capacitance C (pF)	Typical Capacitance 1 KHz (pF)	Reel Qty	Standard Package	Status	Package Type	RoHS
MLV0402ES024V0003P	MLV ES Series	ESD Protection	0402	110V	24VDC	3.0pF (+80~-20%)		10000	10000	Active	Tape and Reel	Y
MLV0402ES012V0010N	MLV ES Series	ESD Protection	0402	72V	12VDC	10pF (±30%)		10000	10000	Active	Tape and Reel	Y
MLV0402ES012V0005P	MLV ES Series	ESD Protection	0402	72V	12VDC	5.0pF (+80~-20%)		10000	10000	Active	Tape and Reel	Y
MLV0402ES024V00R8P	MLV ES Series	ESD Protection	0402	200V	24VDC	0.8pF (+80~-20%)		10000	10000	Active	Tape and Reel	Y
MLV0402ES024V02R5P	MLV ES Series	ESD Protection	0402	200V	24VDC	2.5pF (+80~-20%)		10000	10000	Active	Tape and Reel	Y
MLV0402ES005V0010N	MLV ES Series	ESD Protection	0402	72V	5VDC	10pF (±30%)		10000	10000	Active	Tape and Reel	Y
MLV0402ES005V0022N	MLV ES Series	ESD Protection	0402	52V	5VDC	22pF (±30%)		10000	10000	Active	Tape and Reel	Y
MLV0402ES005V0005P	MLV ES Series	ESD Protection	0402	72V	5VDC	5.0pF (+80~-20%)		10000	10000	Active	Tape and Reel	Y
MLV0402ES005V0056N	MLV ES Series	ESD Protection	0402	52V	5VDC	56pF (±30%)		10000	10000	Active	Tape and Reel	Y
MLV0603ES024V0003P	MLV ES Series	ESD Protection	0603	110V	24VDC	3.0pF(+80~-20%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES012V0100N	MLV ES Series	ESD Protection	0603	55V	12VDC	100pF (±30%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES012V0010N	MLV ES Series	ESD Protection	0603	60V	12VDC	10pF (±30%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES012V0022N	MLV ES Series	ESD Protection	0603	55V	12VDC	22pF (±30%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES012V0005P	MLV ES Series	ESD Protection	0603	85V	12VDC	5.0pF (+80~-20%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES012V0056N	MLV ES Series	ESD Protection	0603	55V	12VDC	56pF (±30%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES024V00R8P	MLV ES Series	ESD Protection	0603	200V	24VDC	0.8pF (+80~-20%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES024V02R5P	MLV ES Series	ESD Protection	0603	200V	24VDC	2.5pF (+80~-20%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES005V0010N	MLV ES Series	ESD Protection	0603	65V	5VDC	10pF (±30%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES005V0022N	MLV ES Series	ESD Protection	0603	34V	5VDC	22pF (±30%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES005V0033N	MLV ES Series	ESD Protection	0603	34V	5VDC	33pF (±30%)		4000	4000	Active	Tape and Reel	Y
MLV0603ES005V0005P	MLV ES Series	ESD Protection	0603	55V	5VDC	5.0pF (+80~-20%)		4000	4000	Active	Tape and Reel	Y
HSP1206SC024V0500	MLV HSP Series	High Surge Protection	1206	<45	14VAC18VDC			2000	2000	Active	Tape and Reel	Y
HSP1206SC047V0500	MLV HSP Series	High Surge Protection	1206	<85	30VAC38VDC			2000	2000	Active	Tape and Reel	Y
HSP1206SC075V0500	MLV HSP Series	High Surge Protection	1206	<100	48VAC60VDC			2000	2000	Active	Tape and Reel	Y
HSP1206SN012V4000	MLV HSP Series	High Surge Protection	1206	<30	6VAC9VDC			2000	2000	Active	Tape and Reel	Y
HSP1206SN012V6000	MLV HSP Series	High Surge Protection	1206	<30	6VAC9VDC			2000	2000	Active	Tape and Reel	Y
HSP1206SC012V0500	MLV HSP Series	High Surge Protection	1206	<25	6VAC9VDC			2000	2000	Active	Tape and Reel	Y
HSP1210SC024V1000	MLV HSP Series	High Surge Protection	1210	<45	14VAC18VDC			1500	1500	Active	Tape and Reel	Y
HSP1210SV470V0250	MLV HSP Series	High Surge Protection	1210	775	300VAC385VDC			1500	1500	Active	Tape and Reel	Y
HSP1210SV470V0500	MLV HSP Series	High Surge Protection	1210	775	300VAC385VDC			1500	1500	Active	Tape and Reel	Y
HSP1210SN047V4000	MLV HSP Series	High Surge Protection	1210	<75	30VAC38VDC			1500	1500	Active	Tape and Reel	Y
HSP1210SC047V1000	MLV HSP Series	High Surge Protection	1210	<85	30VAC38VDC			1500	1500	Active	Tape and Reel	Y
HSP1210SN047V6000	MLV HSP Series	High Surge Protection	1210	<75	30VAC38VDC			1500	1500	Active	Tape and Reel	Y
HSP1210SN075V6000	MLV HSP Series	High Surge Protection	1210	<100	48VAC60VDC			1500	1500	Active	Tape and Reel	Y
HSP1210SC075V1000	MLV HSP Series	High Surge Protection	1210	<100	48VAC60VDC			1500	1500	Active	Tape and Reel	Y
HSP1210SV390V0200	MLV HSP Series	High Surge Protection	1210	647	250VAC320VDC			1500	1500	Active	Tape and Reel	Y
HSP1812SC047V2000	MLV HSP Series	High Surge Protection	1812	<85	30VAC38VDC			500	500	Active	Tape and Reel	Y
HSP1812SC075V2000	MLV HSP Series	High Surge Protection	1812	<100	48VAC60VDC			500	500	Active	Tape and Reel	Y
HSP2220SC047V5000	MLV HSP Series	High Surge Protection	2220	<85	30VAC38VDC			500	500	Active	Tape and Reel	Y
HSP2220SC047V8000	MLV HSP Series	High Surge Protection	2220	<85	30VAC38VDC			500	500	Active	Tape and Reel	Y
HSP2220SC075V3000	MLV HSP Series	High Surge Protection	2220	<100	48VAC60VDC			500	500	Active	Tape and Reel	Y
HSP2220SV390V0500	MLV HSP Series	High Surge Protection	2220	647	250VAC320VDC			500	500	Active	Tape and Reel	Y
HSP2220SV390V0800	MLV HSP Series	High Surge Protection	2220	647	250VAC320VDC			500	500	Active	Tape and Reel	Y
HSP2220SV430V0500	MLV HSP Series	High Surge Protection	2220	705	275VAC350VDC			500	500	Active	Tape and Reel	Y
HSP2220SV470V0500	MLV HSP Series	High Surge Protection	2220	775	300VAC385VDC			500	500	Active	Tape and Reel	Y
HSP2220SV470V0800	MLV HSP Series	High Surge Protection	2220	775	300VAC385VDC			500	500	Active	Tape and Reel	Y
HSP3220SV430V1000	MLV HSP Series	High Surge Protection	3220	705	275VAC350VDC			500	500	Active	Tape and Reel	Y
HSP3220SV470V1000	MLV HSP Series	High Surge Protection	3220	775	300VAC385VDC			500	500	Active	Tape and Reel	Y
MLV1206HA014V0200	MLV HA Series	High Surge Protection	1206	30	11VAC14VDC		1200	3000	3000	Active	Tape and Reel	Y
MLV1206HA018V0200	MLV HA Series	High Surge Protection	1206	39	14VAC18VDC		780	3000	3000	Active	Tape and Reel	Y
MLV1206HA022V0200	MLV HA Series	High Surge Protection	1206	44	17VAC22VDC		750	3000	3000	Active	Tape and Reel	Y
MLV1206HA026V0200	MLV HA Series	High Surge Protection	1206	54	20VAC26VDC		700	3000	3000	Active	Tape and Reel	Y
MLV1206HA030V0200	MLV HA Series	High Surge Protection	1206	65	25VAC30VDC		510	3000	3000	Active	Tape and Reel	Y
MLV1206HA038V0200	MLV HA Series	High Surge Protection	1206	77	30VAC38VDC		440	3000	3000	Active	Tape and Reel	Y
MLV1210HA018V0400	MLV HA Series	High Surge Protection	1210	39	14VAC18VDC		1600	2000	2000	Active	Tape and Reel	Y
MLV1210HA022V0400	MLV HA Series	High Surge Protection	1210	44	17VAC22VDC		1500	2000	2000	Active	Tape and Reel	Y
MLV1210HA026V0400	MLV HA Series	High Surge Protection	1210	54	20VAC26VDC		880	2000	2000	Active	Tape and Reel	Y
MLV1210HA030V0400	MLV HA Series	High Surge Protection	1210	65	25VAC30VDC		800	2000	2000	Active	Tape and Reel	Y
MLV1210HA038V0400	MLV HA Series	High Surge Protection	1210	77	30VAC38VDC		530	2000	2000	Active	Tape and Reel	Y
MLV1812HA038V0800	MLV HA Series	High Surge Protection	1812	77	30VAC38VDC		1600	1000	1000	Active	Tape and Reel	Y
MLV1812HA045V0800	MLV HA Series	High Surge Protection	1812	90	35VAC45VDC		1200	1000	1000	Active	Tape and Reel	Y
MLV0402NA014V0020	MLV NA Series	Normal Surge Protection	0402	35	11VAC14VDC		50	10000	10000	Active	Tape and Reel	Y
MLV0402NA018V0020	MLV NA Series	Normal Surge Protection	0402	44	14VAC18VDC		45	10000	10000	Active	Tape and Reel	Y
MLV0402NA006V0020	MLV NA Series	Normal Surge Protection	0402	20	4VAC5.5VDC		200	10000	10000	Active	Tape and Reel	Y
MLV0402NA009V0020	MLV NA Series	Normal Surge Protection	0402	24	6VAC9VDC		135	10000	10000	Active	Tape and Reel	Y
MLV0402NA011V0020	MLV NA Series	Normal Surge Protection	0402	24	6VAC9VDC		135	10000	10000	Active	Tape and Reel	Y
MLV0603NA014V0030	MLV NA Series	Normal Surge Protection	0603	30	11VAC14VDC		210	4000	4000	Active	Tape and Reel	Y
MLV0603NA018V0030	MLV NA Series	Normal Surge Protection	0603	39	14VAC18VDC		160	4000	4000	Active	Tape and Reel	Y
MLV0603NA022V0030	MLV NA Series	Normal Surge Protection	0603	44	17VAC22VDC		145	4000	4000	Active	Tape and Reel	Y
MLV0603NA030V0030	MLV NA Series	Normal Surge Protection	0603	65	25VAC30VDC		110	4000	4000	Active	Tape and Reel	Y
MLV0603NA038V0030	MLV NA Series	Normal Surge Protection	0603	77	30VAC38VDC		90	4000	4000	Active	Tape and Reel	Y
MLV0603NA006V0030	MLV NA Series	Normal Surge Protection	0603	20	4VAC5.5VDC		650	4000	4000	Active	Tape and Reel	Y
MLV0603NA009V0030	MLV NA Series	Normal Surge Protection	0603	24	6VAC9VDC		300	4000	4000	Active	Tape and Reel	Y
MLV0805NA018V0100	MLV NA Series	Normal Surge Protection	0805	39	14VAC18VDC		300	3000	3000	Active	Tape and Reel	Y
MLV0805NA038V0100	MLV NA Series	Normal Surge Protection	0805	77	30VAC38VDC		150	3000	3000	Active	Tape and Reel	Y
MLV0805NA014V0100	MLV NA Series	Normal Surge Protection	0805	30	11VAC14VDC		350	3000	3000	Active	Tape and Reel	Y
MLV0805NA022V0100	MLV NA Series	Normal Surge Protection	0805	44	17VAC22VDC		250	3000	3000	Active	Tape and Reel	Y
MLV0805NA026V0100	MLV NA Series	Normal Surge Protection	0805	54	20VAC26VDC		220	3000	3000	Active	Tape and Reel	Y
MLV0805NA030V0100	MLV NA Series	Normal Surge Protection	0805	65	25VAC30VDC		200	3000	3000	Active	Tape and Reel	Y
MLV0805NA045V0080	MLV NA Series	Normal Surge Protection	0805	90	35VAC45VDC		110	3000	3000	Active	Tape and Reel	Y
MLV0805NA006V0080	MLV NA Series	Normal Surge Protection	0805	20	4VAC5.5VDC		1400	3000	3000	Active	Tape and Reel	Y
MLV0805NA009V0080	MLV NA Series	Normal Surge Protection	0805	24	6VAC9VDC		650	3000	3000	Active	Tape and Reel	Y
MLV0805NA011V0100	MLV NA Series	Normal Surge Protection	0805	24	6VAC9VDC		650	3000	3000	Active	Tape and Reel	Y
MLV1210NA018V0250	MLV NA Series	Normal Surge Protection	1210	39	14VAC18VDC		1150	2000	2000	Active	Tape and Reel	Y
MLV1812NA045V0500	MLV NA Series	Normal Surge Protection	1812	90	35VAC45VDC		1000	1000	1000	Active	Tape and Reel	Y
