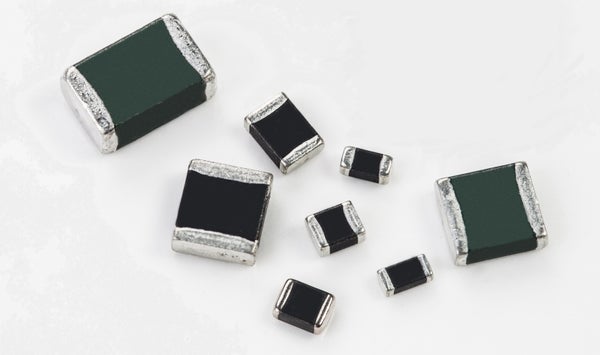

Series: 多层压敏电阻
MLV HSP Series
产品特点:
- 双向对称V/I特性
- 符合IEC61000-4-5标准
- 极高的耐浪涌承受能力：200-800A@8/20μs
- 多层结构、更高功耗
| Supplier Part Number | Part Series | Fuse Type | Size | Clamping Voltage | Working Voltage (Max) | Reel Qty | Standard Package | Status | Package Type | RoHS |
|---|---|---|---|---|---|---|---|---|---|---|
| HSP1206SC024V0500 | MLV HSP Series | High Surge Protection | 1206 | <45 | 18VDC | 2000 | 2000 | Active | Tape and Reel | Y |
| HSP1206SV240V0350 | MLV HSP Series | High Surge Protection | 1206 | 395 | 200VDC | 2000 | 2000 | Active | Tape and Reel | Y |
| HSP1206SC047V0500 | MLV HSP Series | High Surge Protection | 1206 | <85 | 38VDC | 2000 | 2000 | Active | Tape and Reel | Y |
| HSP1206SC075V0500 | MLV HSP Series | High Surge Protection | 1206 | <100 | 60VDC | 2000 | 2000 | Active | Tape and Reel | Y |
| HSP1206SC012V0500 | MLV HSP Series | High Surge Protection | 1206 | <25 | 9VDC | 2000 | 2000 | Active | Tape and Reel | Y |
| HSP1206SN012V4000 | MLV HSP Series | High Surge Protection | 1206 | <30 | 9VDC | 2000 | 2000 | Active | Tape and Reel | Y |
| HSP1206SN012V6000 | MLV HSP Series | High Surge Protection | 1206 | <30 | 9VDC | 2000 | 2000 | Active | Tape and Reel | Y |
| HSP1210SC024V1000 | MLV HSP Series | High Surge Protection | 1210 | <45 | 18VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1210SV470V0500 | MLV HSP Series | High Surge Protection | 1210 | 775 | 385VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1210SV470V0250 | MLV HSP Series | High Surge Protection | 1210 | 775 | 385VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1210SN047V4000 | MLV HSP Series | High Surge Protection | 1210 | <75 | 38VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1210SC047V1000 | MLV HSP Series | High Surge Protection | 1210 | <85 | 38VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1210SN047V6000 | MLV HSP Series | High Surge Protection | 1210 | <75 | 38VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1210SN075V6000 | MLV HSP Series | High Surge Protection | 1210 | <100 | 60VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1210SC075V1000 | MLV HSP Series | High Surge Protection | 1210 | <100 | 60VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1210SN075V4000 | MLV HSP Series | High Surge Protection | 1210 | <100 | 60VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1210SV390V0200 | MLV HSP Series | High Surge Protection | 1210 | 647 | 320VDC | 1500 | 1500 | Active | Tape and Reel | Y |
| HSP1812SV270V0500 | MLV HSP Series | High Surge Protection | 1812 | 450 | 225VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP1812SV430V0800 | MLV HSP Series | High Surge Protection | 1812 | 705 | 350VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP1812SV470V0800 | MLV HSP Series | High Surge Protection | 1812 | 775 | 385VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP1812SC047V2000 | MLV HSP Series | High Surge Protection | 1812 | <85 | 38VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP1812SC075V2000 | MLV HSP Series | High Surge Protection | 1812 | <100 | 60VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP1812SV470V0500 | MLV HSP Series | High Surge Protection | 1812 | 775 | 385VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SV240V0800 | MLV HSP Series | High Surge Protection | 2220 | 295 | 195VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SV270V0500 | MLV HSP Series | High Surge Protection | 2220 | 450 | 225VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SC047V8000 | MLV HSP Series | High Surge Protection | 2220 | <85 | 38VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SC047V5000 | MLV HSP Series | High Surge Protection | 2220 | <85 | 38VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SC075V3000 | MLV HSP Series | High Surge Protection | 2220 | <100 | 60VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SV390V0500 | MLV HSP Series | High Surge Protection | 2220 | 647 | 320VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SV390V0800 | MLV HSP Series | High Surge Protection | 2220 | 647 | 320VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SV430V0500 | MLV HSP Series | High Surge Protection | 2220 | 705 | 350VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SV430V0800 | MLV HSP Series | High Surge Protection | 2220 | 705 | 350VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SV470V0800 | MLV HSP Series | High Surge Protection | 2220 | 775 | 385VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP2220SV470V0500 | MLV HSP Series | High Surge Protection | 2220 | 775 | 385VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP3220SV430V1000 | MLV HSP Series | High Surge Protection | 3220 | 705 | 350VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP3220SV470V1000 | MLV HSP Series | High Surge Protection | 3220 | 775 | 385VDC | 500 | 500 | Active | Tape and Reel | Y |
| HSP0806SV240V0200 | MLV HSP Series | High Surge Protection | 0806 | 395 | 200VDC | 2000 | 2000 | Active | Tape and Reel | Y |
| HSP0806SV430V0100 | MLV HSP Series | High Surge Protection | 0806 | 705 | 350VDC | 2000 | 2000 | Active | Tape and Reel | Y |
